The LightPeg retail display system is an innovative 12.7mm ultra thin shelf peg system equipped with energy efficient LED technology and wall mountable. The aluminum lightpeg is custom manufactured with the highest energy efficient LED light, and powered with extremely safe low voltage 9 V DC power source. The body of LightPeg serves two main functions: first to serve as an asthetic element to the retail display and second to route the generated heat from the LEDs to the luminaire body. Active electronic devices on the circuit board guarantee an optimal operation of each LED and to maintain a constant temperature eliminating rapid ageing of the LED due to overheating are giving a guaranteed lifetime of > 50.000 hours. LightPeg has a wide light distribution and comes in white light 3 options Warm (2700K), Natural (4000K) or Cool (5500K).

Flexible | Modular | Creative

The rear of the display wall houses access to the power input connectors, these are simple 2.5mm dc power jacks and connect to the pegs directly via the DC power socket input. A single Class II 100 watt power supply is capable of driving 40 pegs. Each Peg consumes 1.35 Watts and DC power input is rated at 9V. In addition all LightPeg models are dimmable with a suitable PWM, DALI or DMX drivers which can be located in the back of the display or mounted remotely in a central location within the store.

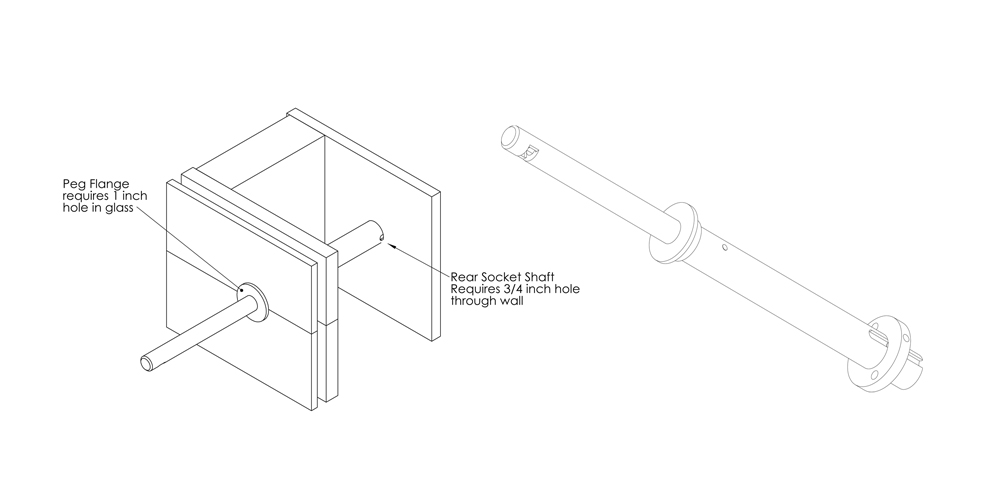

The LightPeg unit has been designed to be mounted to a number of different materials including Metal, Wood, Plaster and Glass. The design of LightPeg allows for variable display thicknesses and fits securely using a lockable flange at the rear of the Peg. Lightpeg is capable of taking a 5 kg maximum load and is suitable for hanging various type of merchandise and comes in Dark Black or Pure White colour, with optional custom colour coatings available.

Features

Fully customizable
9V DC Power Input
Class II Safe Power
High Output LED Light Source
Various LightPeg spacing available
Variable Wall and Display thickness?
Ultra thin 12.7mm diamater Peg
Light weight, modular design enables ease of installation

Specification

  • Mechanical
  • HousingBlack Polycarbonate
  • Connectors2.5mm Jack & Socket
  • Overall Dimensions12.7mm (R) x 31.75mm (R) x 283mm (L)
  • LED Point SourceNichia LED
  • Rated Life50,000 Hours
  • PitchVariable
  • MountingFlange & Socket
  • Color TemperaturesWarm (2700K) | Natural (4000K) | Cool (5500K)
  • Electrical
  • Input Voltage Range9 Vdc
  • Power Consumption1.35 (w/150mA) per Peg
  • Environmental
  • Operating Temperature20C to +50C
  • IP RatingIP44 Indoor Only
  • CertificationCE | RoHS
  • Warranty3 Year
