The new ColorTile from KiboWorks transforms environments with a rich, saturated, ambient glow and effect. The LED Tiles can create seamless visual effects in fascinating colour or white light.

Flexible | Modular | Creative

The modular design and compact profile are ideal for small or large scale applications. Capable of static or animated low resolution effects, providing maximum artistic flexibility and a minimum of effort, the ColorTile´s compact size makes it extremely suitable for integration into a variety of indoor and outdoor environments.

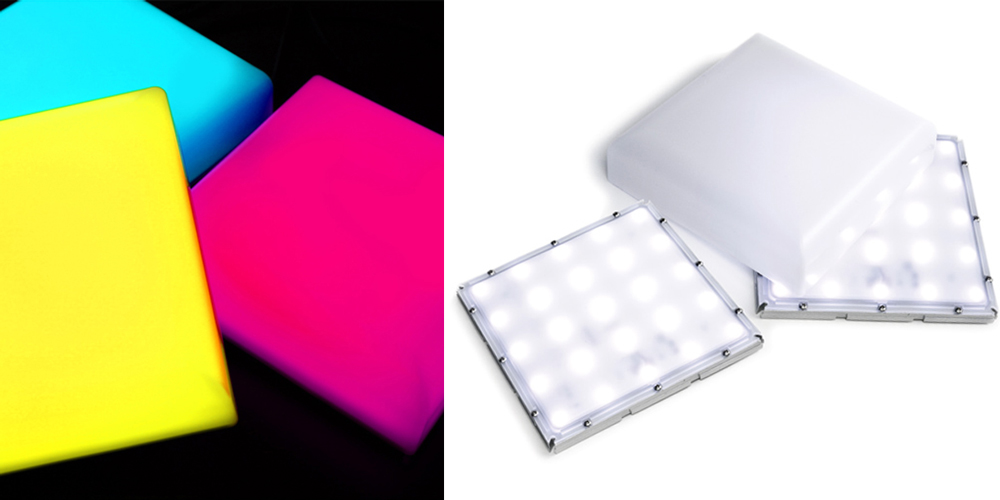

ColorTile come 25 high quality Nichia LEDs and can be customised for different LED densities. Used with or without a front diffuser, multiple MediaTiles can be combined in a countless variety of ways for ultimate design freedom.

Features

Fully customizable
Individually controllable Tiles
Multiple controller options
Each Tile features calibrated brightness and colors
Various Tile spacing available
DMX and ArtNet controllable (ArtNet compatible with Artnet LAN interface)
Intuitive mapping and addressing via KiboNode Controller
Efficient and long lasting
IP67 rated for permanent outdoor or indoor use

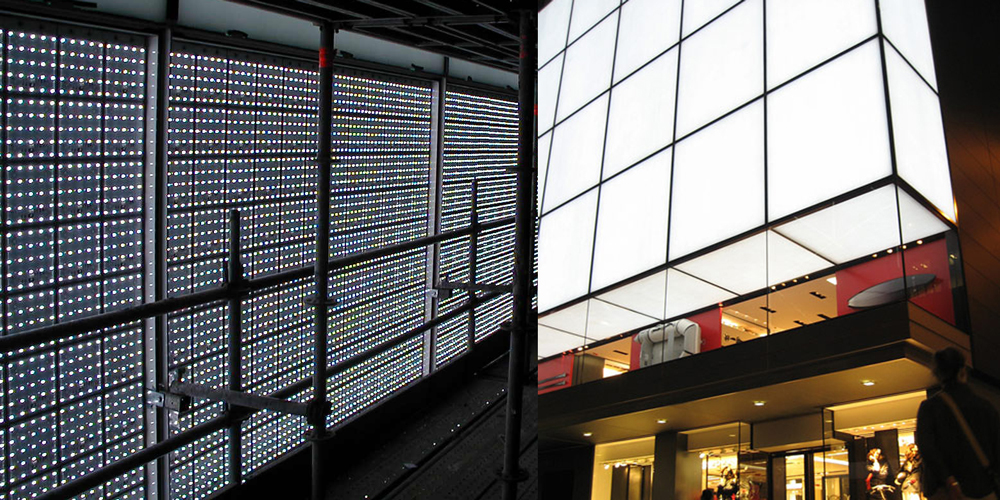

Perfect for facade, Architectural, Retail and Entertainment

Specification

  • Mechanical
  • HousingAluminium Backplate with Polycarbonate cover
  • LensAcrylic | White | Clear
  • ConnectorsIP67 4 Pole M12

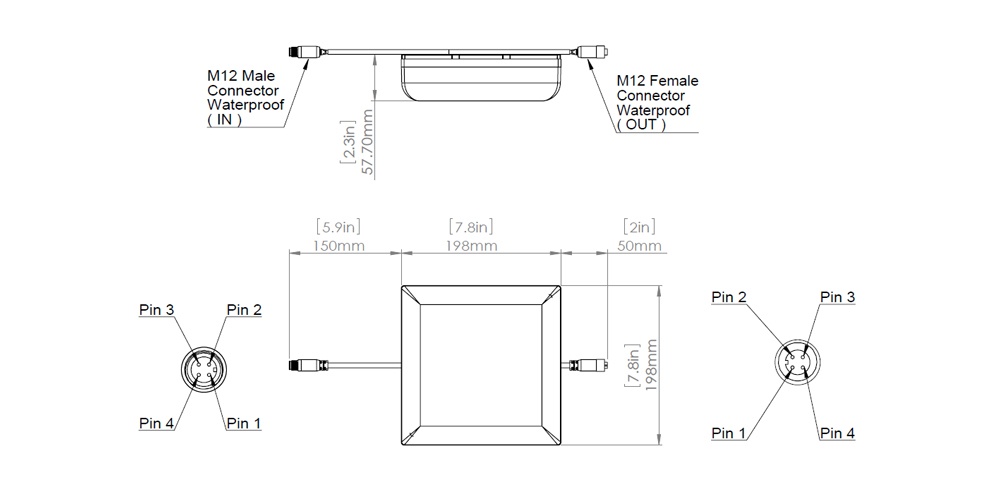

  • Overall Dimensions192mm (H) x 57.7mm (W) x 192mm (L)
  • LEDs per string100 @ 30 Frame per second
  • OutputWW - 60 | CW - 80 | RGB - 140 Lumens per LED
  • Rated Life50,000 Hours
  • Tile PitchVariable
  • Mounting4 x M4 Slot
  • Electrical
  • Input Voltage Range20 - 30Vdc
  • Power Consumption8.9 Watts per Dot
  • Environmental
  • Operating Temperature20C to +50C
  • Operating Relative Humidity100%
  • IP RatingIP66 Outdoor
  • CertificationCE | RoHS
  • Warranty3 Year
  • Control
  • ProtocolsStream | DMX512 | (ArtNet compatible with Artnet LAN interface)
