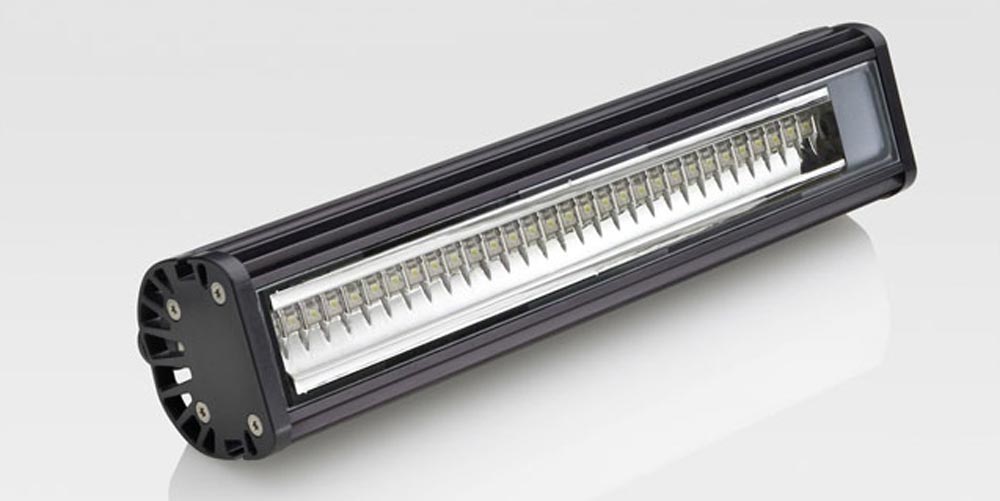

KiboWorks cutting-edge and high-power Generation 4 (G4) available in low, medium and high output versions, with a maximum power consumption of 38 watts per ft, and makes a statement that has to be seen to be believed. This fixture has become an important product for architectural and entertainment LED Lighting. The G4 Linear is a versatile and distinct LED based range of floodlighting that provide designers unlimited options to illuminate and enhance the architecture for exterior and interior applications.
The G4 Flood is a reliable and cost effective color-changing light fixture designed for creating fixed or dynamic colorful lighting effects, With its wide range of Spot, Medium, Wide and Asymmetric beam spreads G4 is ideal for flood, wash and accent lighting. Clean, sophisticated lines blend seamlessly with architectural elements and create dramatic washes of light for spectacular effects.
Features
Lumen Output (lm/ft) | Spot | Med | Wide
Low Output
Med Output
Wide Output
Warm White 460 800 1150 Neutral White 520 900 1300 Cool White 460 1100 1600 RGB 504 729 1092 Lumen Output (lm/ft) | Asymmetric
Low Output
Med Output
Wide Output
Warm White 390 720 1140 Neutral White 650 1200 1900 Cool White 650 1200 1900 RGB 480 625 1406 Power (w/ft) | Spot | Med | Wide
Low Output
Med Output
Wide Output
Warm White 11.5 11.5 11.5 Neutral White 23 23 23 Cool White 38 38 38 RGB 11.5 23 28 Power (w/ft) | Asymmetric
Low Output
Med Output
Wide Output
Warm White 11 21 32 Neutral White 11 21 32 Cool White 11 21 32 RGB 14 23 43 Efficacy (lm/w) | Spot | Med | Wide
Low Output
Med Output
Wide Output
Warm White 40.0 45.0 55.6 Neutral White 34.8 39.0 47.8 Cool White 30.2 34.2 42.0 RGB 43.8 31.6 39 Efficacy (lm/w) | Asymmetric
Low Output
Med Output
Wide Output
Warm White 35.4 34.2 35.6 Neutral White 59.0 57.0 59.3 Cool White 59.0 57.0 59.3 RGB 34.3 27.2 32.7
Specification
Color Temperature
Warm White 2950k (+|- 100k) Neutral White 3950k (+|- 100k) Cool White 5325k (+|- 100k) Rated Life
50,000 | 70% Lumen Maintenance Beam Spread (FWHM)
Spot 10° x 10° (Symmetric) Medium 22° x 22° (Symmetric) Wide 42° x 42° (Symmetric) Asymmetric 12° x 100° (Asymmetric) Base | Lens
Clear Glass Housing (Standard)
Material Aluminium Finish Hard Anodized Color Black Operating Temperature
-40°C to +40°C Voltage
100-277 VAC Warranty
3 Year Limited Standards
RoHS | UL Environment
IP66 Wet Location
