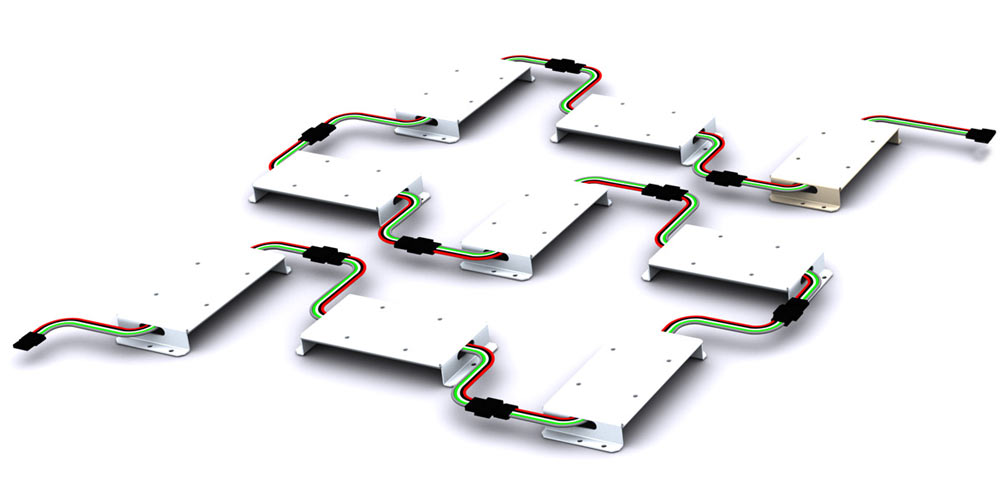

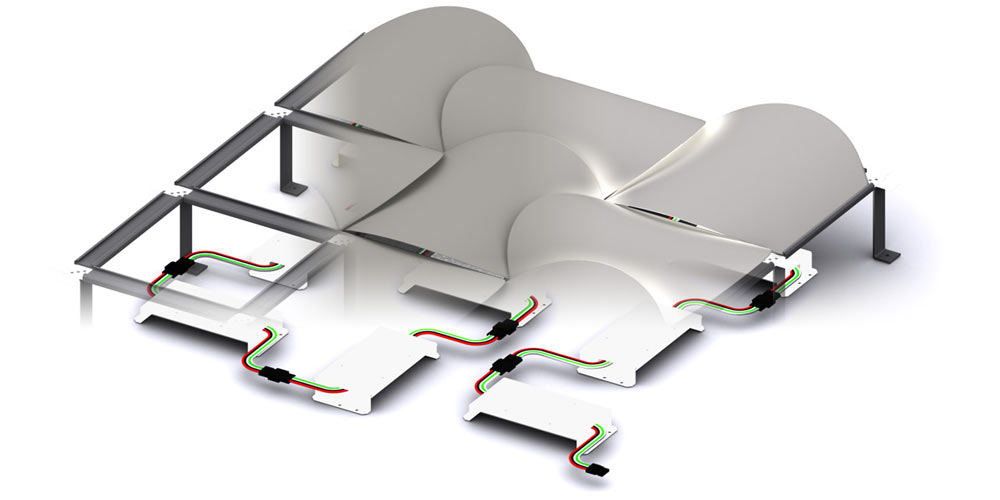

KiboWorks have taken backlighting to a completely new level and created WovinLumen, a unique addressable LED backlit module specifically designed to work with Wovin Wall®. WovinLumen is a versatile low-profile fixture, fitting precisely into the Wovin Wall frame and connecting together with a simple click to form strings of modules, perfect for animated displays, large-scale effects and graphics. The illuminated Wovin Wall tiles can be installed into a host of settings, including architectural, retail, and entertainment.

Flexible | Modular | Creative

WovinLumen modules can be controller via DMX, ArtNet, Stream and Dali to produce dimming or animated effects. Modules are available in a range of white colour temperatures including worm, neutral and cool white as well as RGB and RGBW. Custom colour temperatures and single colour's can be supplied.

The Wovin Wall® range provides design solutions for interior walls and ceilings unlike any other product. Elegant and simple, these lightweight decorative wall and ceiling tiles are easy to install and can be fitted to most surfaces. Wovin Wall´s modular assembly facilitates custom wall sizing, lending itself well to exhibition and retail spaces. The modular nature of Wovin Wall® is the perfect medium to reflect new colour schemes, product launches or seasonal changes.


Fully customizable

Daylight visible, with each module outputting upto 540 lumens in a low profile housing

Up to 60 modules can be connected together in a single run

Onboard Proto-Stream DMX IC requires no physical addressing or DMX termination

Uses advanced gamma and binning algorithms to provide unparalleled colour consistency and accuracy

A light enhancing optical strip produces over 94% reflectivity, increasing light output


  • Mechanical
  • HousingAluminium
  • LensClear with light reflective Strip
  • Connectors3M Power Clamp 5 pin 6 amp

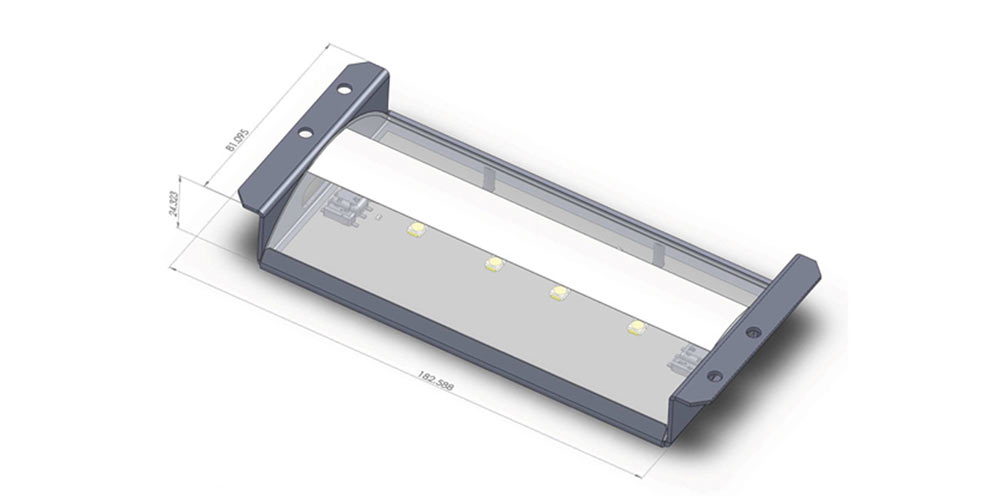

  • Overall Dimensions24.3mm (H) x 81.1mm (W) x 128.6mm (L)
  • LED Point SourceNichia LED
  • Rated Life70,000 Hours
  • PitchVariable
  • Mounting4 X M4 Screws
  • Optical
  • Lumen Output400lm per module before diffusion
  • Color TemperaturesWarm (2700K) | Natural (4000K) | Cool (5500K)
  • Color Channels1CH Mono | 3CH RGB | 4CH RGBW
  • Electrical
  • Input Voltage Range48 Vdc
  • Power Consumption4 Watts per Module
  • Control

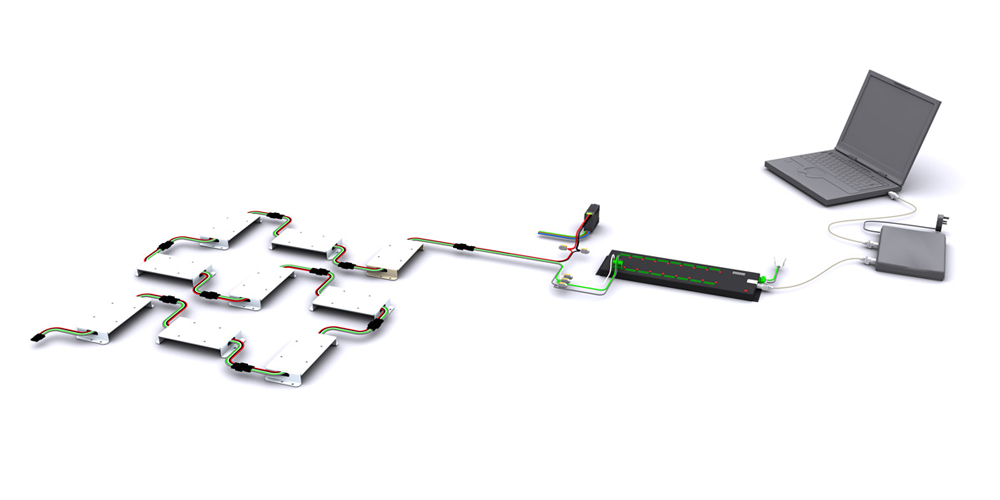

  • Data TransmissionStandard UDP Serial & E1-31 DMX Ethernet Input
  • Data ProtocolStream | DMX | ArtNet
  • Video Frame RateUp to 100 frames per second
  • Environmental
  • Operating Temperature20C to +50C
  • IP RatingIP20 Indoor Only
  • CertificationCE | RoHS
  • Warranty5 Year
