Flexibility is the key with the new IP86 Linear LED Series from KiboWorks, which uses Nichia, Philips or Cree high powered LED's to produce unprecedented lighting solutions. The Xtreme Series is a modular LED system that can be specified with a variety of configurations, LED colours and outputs, making all types of linear decorative lighting effects possible.

Flexible | Modular | Creative

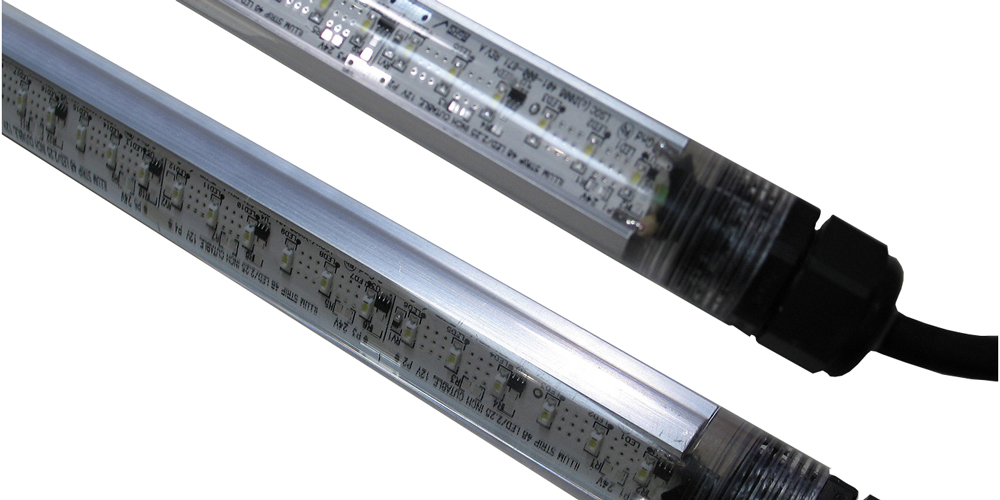

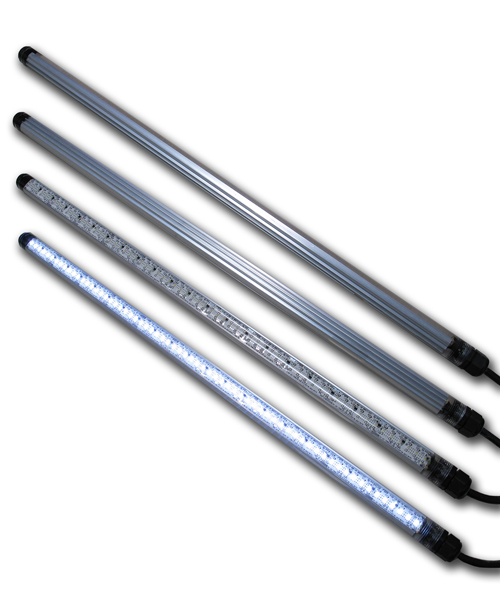

The Xtreme Tube is a RGB or white LED light engine in a waterproof, impact and vibration resistant, polycarbonate tube filled with silicon resin. This unique enclosure provides ultimate protection for underwater, outdoor and other harsh environment applications.

The Xtreme series from KiboWorks offers distinct advantages over other waterproof linear alternatives, including superior light output and lumen maintenance. Housed in an anodized extruded aluminium body with a polycarbonate protective visor and sealed to IP68 rating, the LLED Series is available with a choice of LED's in six colour options - warm white, cool white, blue, green, red and amber and a variety of beam angles.

Features

Fully customizable
Designed to withstand under water and harsh environmant applications
Slin Design allows for a variety of applications and custom solutions
Multiple controller options
Each fixture features calibrated brightness and colors
Various Dot spacing's available
Custom length
ArtNet or DMX controllable
Efficient and long lasting
IP68 rated for permanent underwater use

Specification

  • Mechanical
  • MaterialPolycarbonate housing with optically clear resin filling
  • ConnectorsIP68 4 Pin

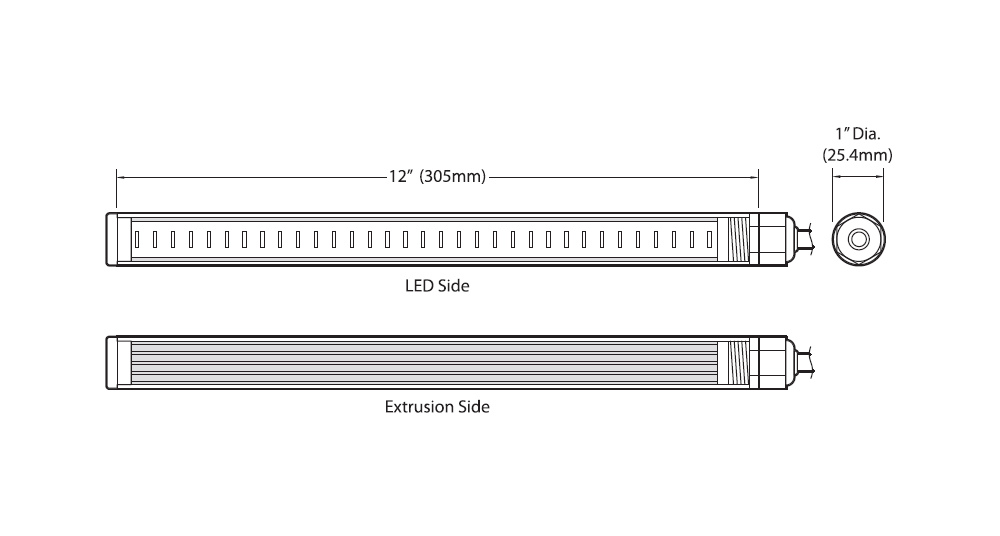

  • Overall Dimensions25.4 (Dia) x 304.8mm | 457.2mm | 609.6mm | 914.4mm | 1219.2mm | Custom (W)
  • Color SourceCool White | Warm White | RGB
  • Output300lm/ft CW | 200lm/ft WW | 280lm/ft RGB
  • Rated Life75,000 Hours | 70% Lumen Maintenance
  • Beam Spread100°
  • MountingMarine Grade Stainless Steel Spring Clip
  • Electrical
  • Input Voltage Range24Vdc
  • Power Consumption7W/ft CW | 7W/ft WW | 18W/ft RGB
  • Environmental
  • Operating Temperature-40℃ to +40℃
  • Operating Relative Humidity100%
  • IP RatingIP68 Outdoor
  • CertificationCE | RoHS
  • Warranty3 Year
  • Control
  • ProtocolsStream | DMX512 | ArtNet
