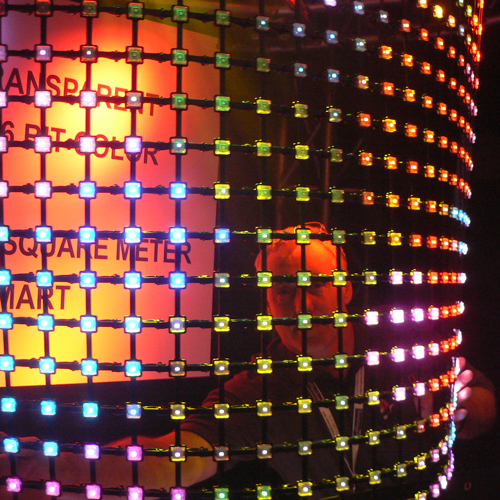

KiboWorks's LED X16 Gridz system is a modular video solution that utilizes the latest developments in LED technology. The mesh structure offers a unique transparent quality that allows you to see objects behind it such as a projected image, a backlit image or a theatrical set, causing the mesh to seem as though it has disappeared.

Flexible | Modular | Creative

The modular nature of the design allows for individually addressable pixels, controllers and panels to have optimal flexibility in the configuration of any display or video project. Configure your own media wall with panel size 1016mm x 1016mm (40? x 40?), holding 400 LEDs, respectively, allowing you to build a video wall of almost any size and shape.

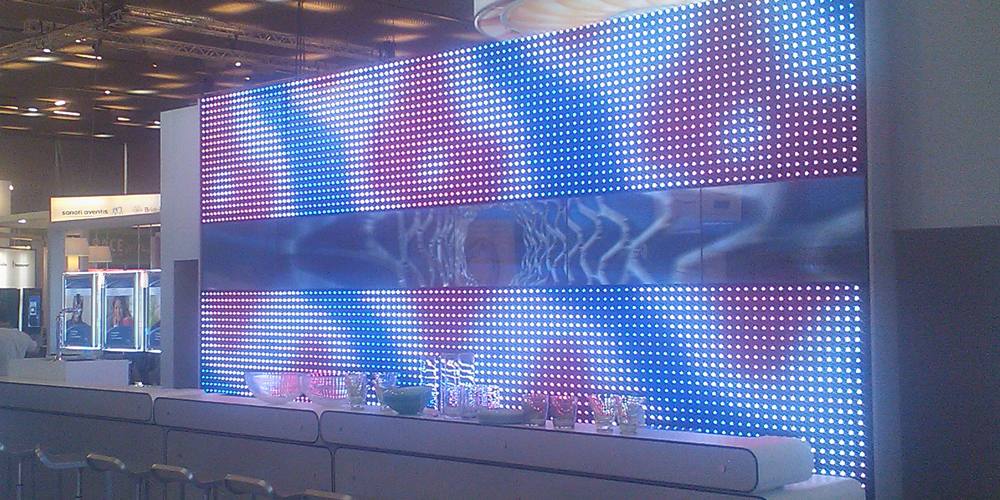

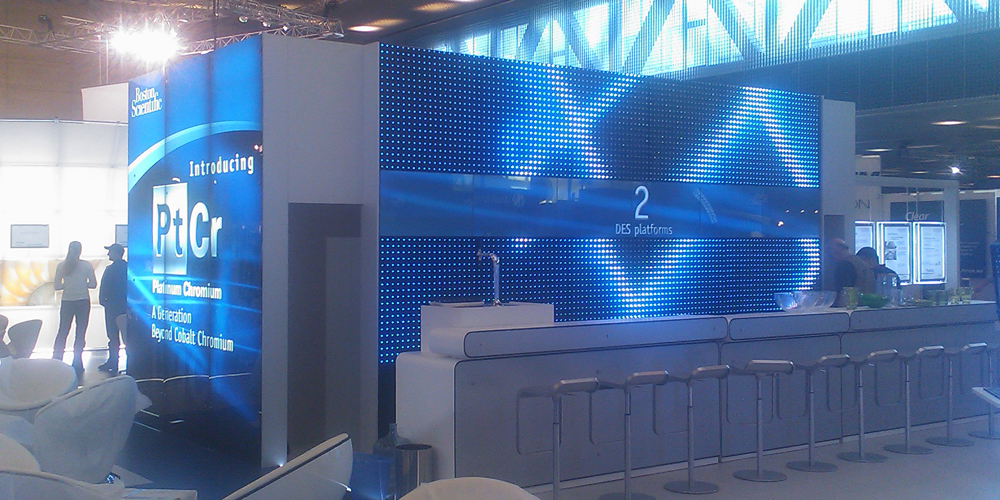

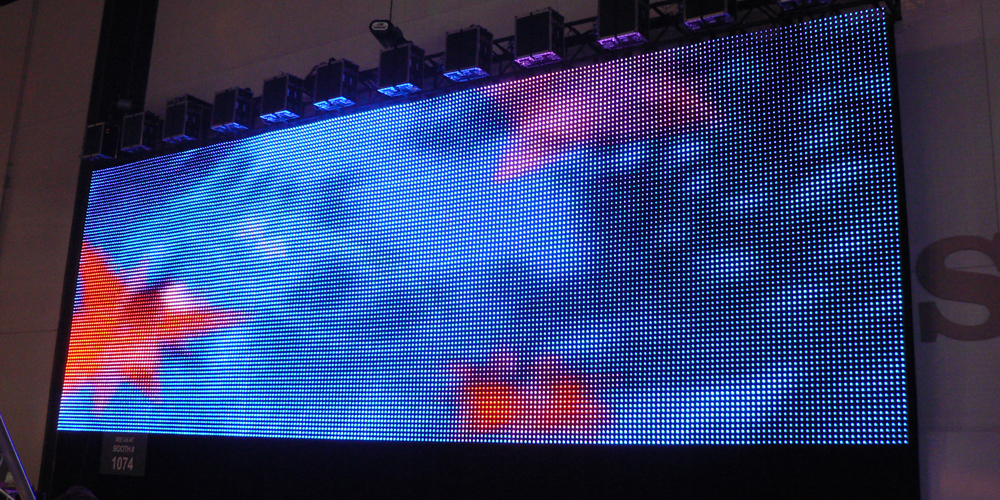

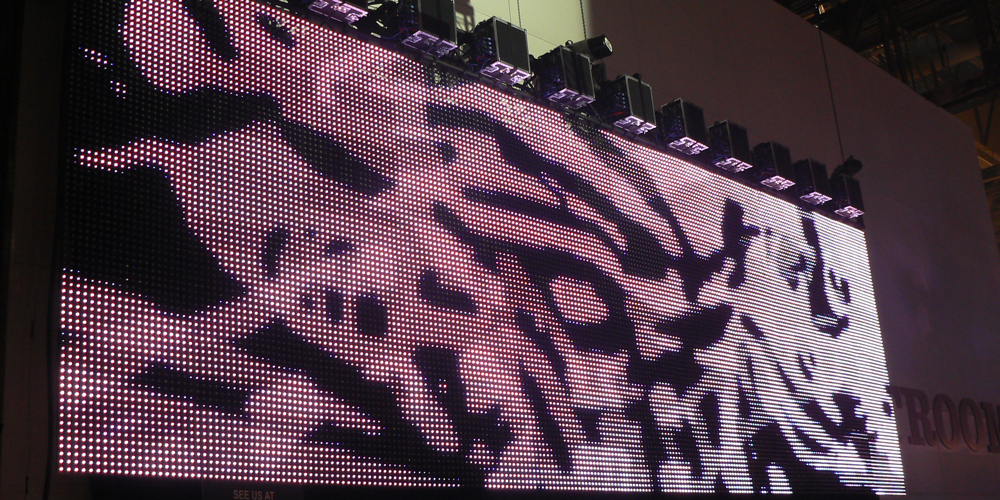

Lightweight and with a unique self level and centering hook and clip mounting system, Panels of X16 Gridz can be configured in any free form shape desired and has been used in many installations throughout the world, creating amazing displays in architectural, retail, and hospitality environments. X16 Gridz can be controlled by DMX, ArtNet, sACN and Stream and our protocol translators can adapt to handle any protocol.


Fully customizable
Light weight, modular design enables ease of installation
Individually controllable Pixels
Multiple controller options
Each Dot features calibrated brightness and colors
Various Dot spacing's available
Customizable string length
ArtNet or DMX controllable
Intuitive mapping and addressing via KiboNode Controller
Efficient and long lasting
IP66 rated for permanent outdoor or indoor use
Perfect for facade, Architectural, Retail and Entertainment


  • Mechanical
  • MaterialBlack Anodized Aluminium
  • Connectors4 Pin Phoenix
  • Overall Dimensions1016mm (H) x 1016mm (L) x 13mm (W)
  • LEDs per string100 | 4 strings per panel
  • Output5 Lumens per LED
  • Rated Life50,000 Hours
  • Connectors4 Pin Phoenix
  • Dot Pitch50mm and Custom Pitch>/li>
  • Mesh Density50% @ 50mm dot pitch
  • MountingSelf leveling & Centering hook and clip
  • Electrical
  • Input Voltage Range12Vdc
  • Power Consumption300 Watts per Panel
  • Environmental
  • Operating Temperature-20℃ to +40℃
  • Operating Relative Humidity100%
  • IP RatingIP67 Outdoor
  • CertificationCE | RoHS
  • Warranty3 Year
  • Control
  • ProtocolsStream | DMX512 | ArtNet
