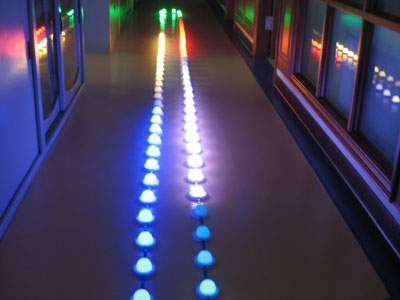

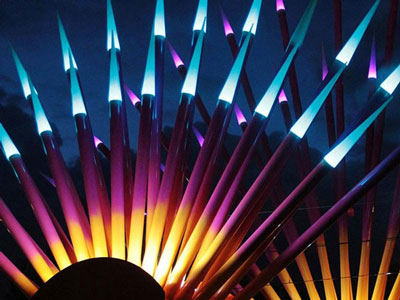

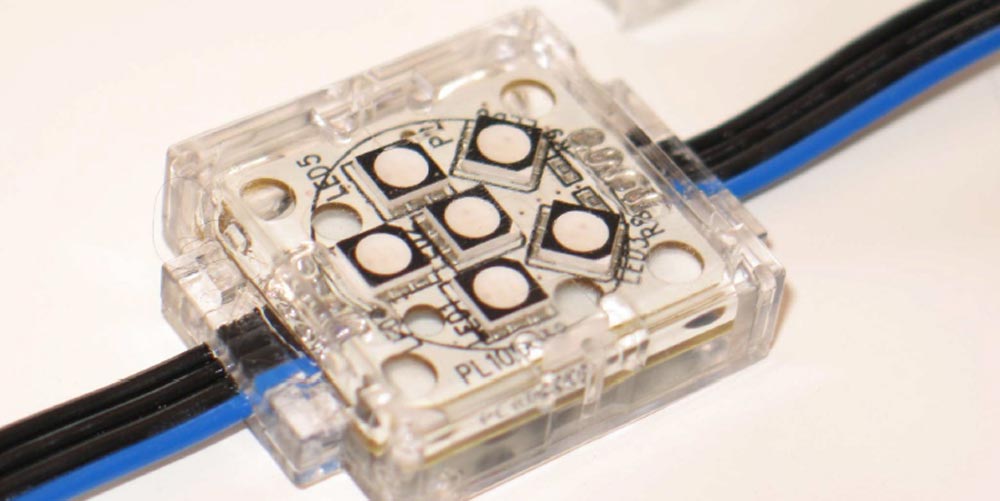

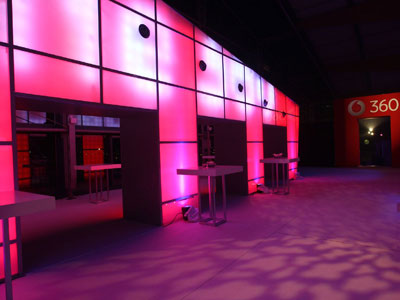

KiboWorks designs and manufactures many types of LED Dots and products for curtain walls. The KIBO X16 DOT Multi is a design commonly used for LED screen walls, lighting through glass facades or wrapping around objects. High reliability, quality design utilizing encapsulated modules, UV stabile plastic and long life electrical components, makes it ideal for installations where service is difficult and failure free operation is required.

Flexible | Modular | Creative

Its simplicity and thin design makes it ideal for the final display surface to be less than 15mm or 3/4 inch thick. Its size at 35mm by 35mm makes it a perfect fit for international curtain wall designs. Its clear low contrast nature makes it disappear during the day and night.

LED count, wattage, white temperature and brightness can be varied as client requires. Most popular is 42 Lumens RGB and 132 lumens white. The X16 DOT can be built to custom spec since they can last over a decade. DMX or digitally addressable X16 dots for video monochromatic type displays are also available.

Features

Fully customizable
Individually controllable Dots
Multiple controller options
White color temp from 2700-8000K

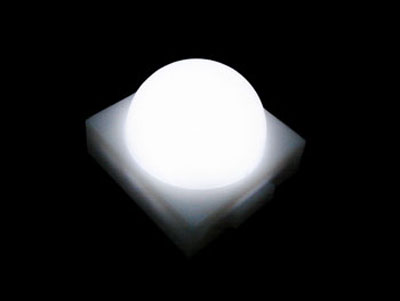

Optional White diffused dome cover
Various Dot spacing's available
Customizable string length
ArtNet or DMX controllable
Optional mounting clip
42 to 465 lumens per dot
IP66 rated for permanent outdoor or indoor use
Perfect for facade, Architectural, Retail and Entertainment

Specification

  • Mechanical
  • HousingClear Polycarbonate with clear silicone
  • MaterialUL V94, UL8750 and UL-UV stabile
  • ConnectorsIDC 4 contact connectors for flat cable
  • Overall Dimensions10mm (H) x 35mm (W) x 35mm (L)
  • LEDs per string100 @ 30 Frame per second
  • Output42 - 465 Lumens per LED
  • Rated Life50,000 Hours
  • Dot Pitch25.4mm, 38.1mm, 50.8mm, 76.2mm
  • MountingMounting Clip
  • Electrical
  • Input Voltage Range12 - 24Vdc
  • Power Consumption1 - 4 Watts per Dot
  • Environmental
  • Operating Temperature20C to +50C
  • Operating Relative Humidity100%
  • IP RatingIP66 Outdoor
  • CertificationCE | RoHS
  • Warranty3 Year
  • Control
  • Gamma5 selectable gamma tables
  • ProtocolsStream | DMX512 | ArtNet | Siti DM412
  • Color Control16 Bit 3 channel
  • Colour CorrectionPixel by Pixel
  • Pixel SetGrouping | Multiplier
