KiboWorks X16 Dots are flexible, modular, and a lightweight video display system comprised of individually addressable color changing nodes that are low profile and self contained. Their unique transparent quality makes them ideal for architectural and video applications.

Flexible | Modular | Creative

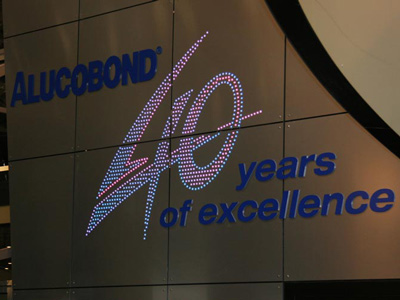

The X16 Dot can be integrated in to many different surfaces such as metal and composite cladding. Offering new possibilities for architectural lighting displays indoors and out. Each string of Dots can be custom designed with a variety of pitch sizes between dots and nuber of dots on the string for maximum flexibility

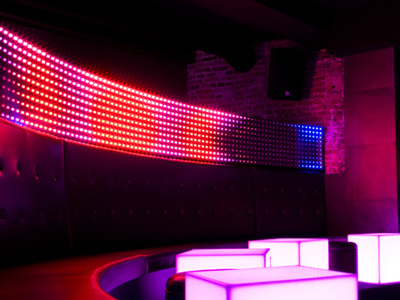

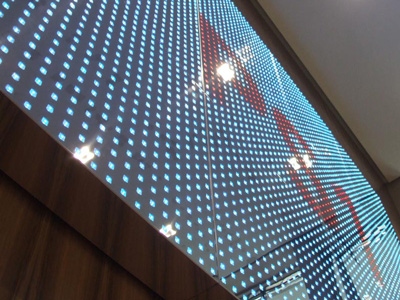

Strings of X16 dots can be configured in any free form shape desired and has been used in many installations throughout the world, creating amazing displays in architectural, retail, and hospitality environments. X16 Dots can be controlled by DMX, ArtNet, sACN and Stream and our protocol translators can adapt to handle any protocol.

Features

Fully customizable
Individually controllable Dots
Multiple controller options
Maximum 100 Dots per string
Each Dot features calibrated brightness and colors
Various Dot spacing's available
Customizable string length
ArtNet or DMX controllable
Intuitive mapping and addressing via KiboNode Controller
Efficient and long lasting
IP66 rated for permanent outdoor or indoor use
Perfect for facade, Architectural, Retail and Entertainment

Specification

  • Mechanical
  • HousingClear Polycarbonate with clear silicone
  • MaterialLexan Plastic - UL94-V0 rated
  • Connectors4 Pin Phoenix
  • Overall Dimensions15mm (H) x 15mm (W) x 9mm (L)
  • LEDs per string100 @ 30 Frame per second
  • Output5 Lumens per LED
  • Rated Life50,000 Hours
  • Connectors4 Pin Phoenix
  • Dot Pitch25.4mm, 38.1mm, 50.8mm, 76.2mm
  • MountingVarious Methods
  • Electrical
  • Input Voltage Range12Vdc
  • Power Consumption0.72 (w/60mA) per Dot
  • Environmental
  • Operating Temperature20C to +50C
  • Operating Relative Humidity100%
  • IP RatingIP67 Outdoor
  • CertificationCE | RoHS
  • Warranty3 Year
  • Control
  • ProtocolsStream | DMX512 | ArtNet
