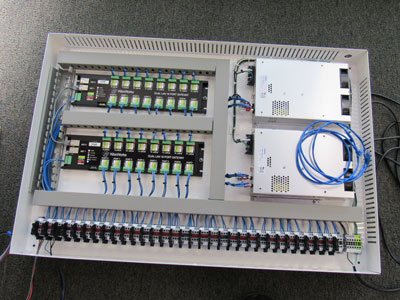

The KiboNode is a 16 Universe DMX Playback Controller with multiple output protocols. Ultra compact, reliable with no moving parts like fans or hard disks, the KiboNode is a sophisticated solid state lighting playback controller. The controller can be DIN rail or wall mounted. KiboNode can be used Standalone or multiple units can be used together for larger installations and synchronized automatically over Ethernet. The units have an internal web interface giving status and configuration information for remote monitoring, and an Ethernet port can be used to connect to the PC running media server software during programming.

Flexible | Modular | Creative

The KiboNode supports a variety of gamma tables to ensure the LED product can display the full spectrum of color even when lighting is at minimum levels. Advanced features include color correction per pixel, color adjustment per string or tape. In addition pixel duplication, addressing and built in test patterns make the KiboNode the most advanced lighting controller on the market today.

Many hours of playback are possible using the onboard microSD card slot. Media content and shows can be downloaded on to a card or split to a number of cards for very large displays via the Media Server PC application.

Features

UDP Serial and E131 DMX Ethernet input
Ethernet port in | port out
1 to 4 Outputs per port
Artnet compatible
Earth shield for solid grounding from EMI
HTML Web Page configuration
Gamma options per port
PWM frequency options to reduce buzzing
Variety of LED driver protocols
Built in test patterns and effects
Per LED pixel color correction
16 full DMX ports or 32 Stream ports
8bit input 8-16 bit output conversion
Remote upload and configuration
Optional Wall Controller Interface

Specification

  • Mechanical
  • Housing19" 2U Rack Enclosure
  • MaterialPainted Anodized aluminum body
  • Connectors4 pole 3M
  • Overall Dimensions482.6mm (L) x 89mmmm (H) x 251mm (W)
  • Rack Space2U
  • Mounting2x M6 screw mounting holes
  • Electrical
  • Input Voltage Range100 to 240 VAC, 50/60 Hz
  • Output Voltage Range7-24VDC
  • Output Current Range5 amps fused outputs
  • Environmental
  • Operating Temperature0℃ to 40℃
  • Operating Relative Humidity90% NonCondensing
  • IP RatingIP20 Dry location use only
  • CertificationCE | RoHS
  • CoolingConvection
  • Warranty5 Year
  • Control
  • Control Bandwidth16 Universe DMX @ 230kb // 32 Universe DMX @ 115kb
  • DMX Addresses8192 (2720 RGB Fixtures)@ 230kb // 16384 (5440 RGB Fixtures)@ 115kb
  • Input ProtocolsArtNet, DMX, sACN and Stream
  • Input ConnectorRJ45 socket for 10/100BaseTX Ethernet
  • Output ProtocolsSiti, MB, SAMHOP, WS2801
  • ConfigurationInternal Dip Switch | IP Address | Output Protocol per Universe | 5 Gamma Correction options | Built in test patterns and effects | Per String or Tape color adjustment | Pixel data grouping or multiplier | 8bit input 816 bit output conversion | Variable Baud Rates 240kb, 230kb, 115kb
  • Isolation / Protection
  • IsolationDMX Input Ground Referenced
  • Indication
  • IndicationConfig, Receive Data, Transmit Data
